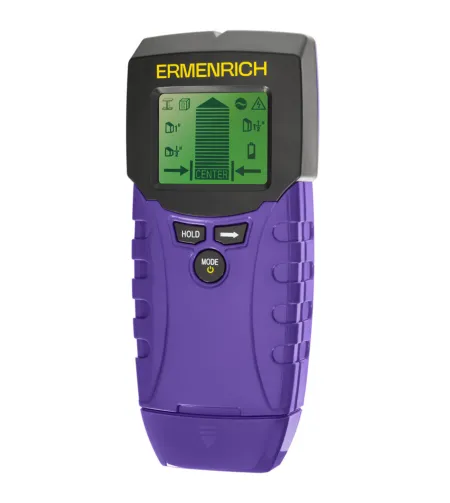

Ermenrich Ping TM100 2-in-1 Stud and Moisture Detector

Ermenrich Ping TM100 combines functions of a hidden stud detector and a professional moisture meter in a single housing made of durable ABS plastic. Its compact design saves space in your toolbox, simplifies transport, and speeds up your workflow. The device handles all material inspection tasks, making it indispensable for professionals on a tight schedule.

Detection of hidden studs

This device is equally valuable during initial construction and final finishing, as the early detection of utilities helps avoid costly mistakes. Special algorithms operate in several modes. Three of them detect wooden and metal studs behind cladding at depths of up to 13mm, 25mm, and 38mm. A separate operating mode is designed to detect metal elements at a depth of up to 60mm, while another one warns of live wires hidden at a depth of up to 51mm below the surface, thereby reducing the risk of damage and the associated hazards.

Measuring humidity and temperature

The device can also operate as a contact moisture meter to assess if materials are ready for further processing. For wood, the device measures moisture content from 6% to 60% with an accuracy of ±2%. For concrete, plaster, and plasterboard, it measures moisture content in the range of 0.2% to 2.9% with an accuracy of ±0.1%. The built-in digital thermometer operates in the range of 0°C to 40°C and displays the readings in 0.1°C increments, allowing the user to accurately monitor indoor and outdoor air temperature.

Interface and controls

The control panel allows you to instantly switch modes, and auto-calibration adapts the sensor to the new material without delay. The backlit LCD display shows depth in millimeters or inches, humidity in percent, and temperature in Celsius or Fahrenheit with large characters. In low light conditions, the audio signal function is useful to confirm target detection. The Hold button records the last measurements that were taken. An auto-off function activates after 3 minutes of inactivity.

Simple operation, robust design, and wide functionality make the device a trusted companion for builders, decorators, carpenters, and DIYers. It provides the user with high measurement accuracy and significant time savings at every work stage.

Key features:

• 2-in-1 wiring detector and moisture meter in a single, compact body to save space in your toolkit and speed up work on site
• 3 scanning depths for studs (13mm, 25mm, and 38mm) to work with finishing materials of different thicknesses
• Mode for detecting metal objects up to 60mm deep within materials to prevent accidental drilling into rebar and pipes
• A function for detecting live wiring up to 51mm deep, enhancing safety during installation work
• Measuring moisture content in wood and building materials with a contact sensor
• LCD display with backlight and an audio alert for easy reading in any conditions
• Last reading hold function and auto-off after 3 min.
