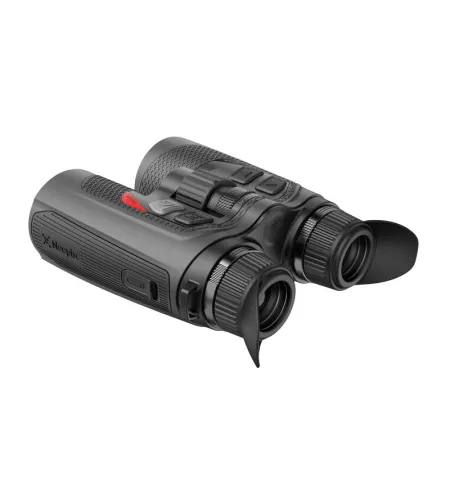

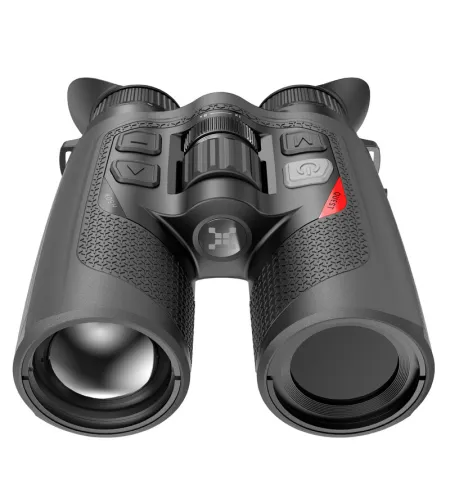

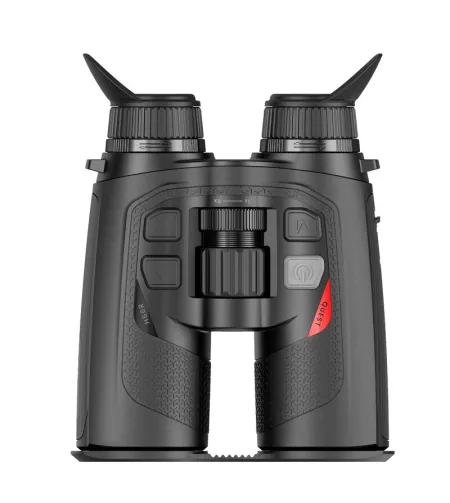

Nocpix Thermal imaging binoculars Quest H35R

Main features of the Quest models:

• Heat sensor 640x512 (H35R/H50R) 384x284 (L35R)
• Vision+ system
• R+ image algorithm
• Integrated laser rangefinder up to 1000 m
• 60 Hz frame rate
• Weight only 700 g

Outstanding visual experience

QUEST features R+ image enhancement for superior clarity and precision, paired with a 1920 x 1200 AMOLED display for an impressive, eye-friendly viewing experience.


A superior sensor sets the standard
The QUEST is equipped with a high-performance sensor (640 x 512 at 12 µm / 384 x 288 at 12 µm) that delivers exceptional image sharpness. With a NETD ≤ 15 mK and a frame rate of 60 Hz, it ensures outstanding thermal sensitivity and delivers clear images even in the most demanding environments.

Powerful detection capabilities
QUEST has a detection range of up to 2600 m and an integrated, concealed LRF with a range of up to 1000 m, allowing you to see further and more accurately than ever before. It also supports ballistic calculations and provides data support for shared hunting. One-handed operation

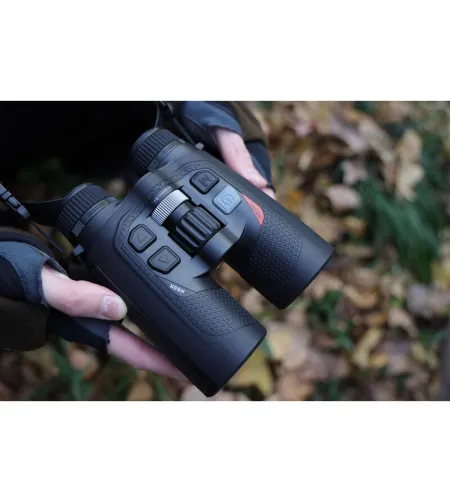

QUEST offers ergonomic, non-slip handling with a simplified 4-button layout and centrally positioned scroll wheels for easy one-handed control and a secure grip in all conditions.


Lightweight and portable
The QUEST weighs only 700 g and comes with a special carrying case. It offers easy transport and convenience for outdoor activities such as hunting and exploring.


Long battery life

The QUEST series features a dual battery design with an integrated and replaceable 18650 battery, ensuring seamless switching and uninterrupted use during your adventure.

The traditional binoculars design

The QUEST features a traditional binocular design with a sophisticated full rubber coating and an IP67 rating for water and dust resistance, ensuring both durability and overall comfort.





Specifications:


Binocular (one objective)
Thermal imaging camera
Enlargement (thermal) 3

Zoom (digital) -24


Lens (thermal) 35mm f:0.9


Sensor type Thermal VOx


Resolution Sensor Thermal (Pixel) 640x512


Pixel size 12

temperature resolution (mK) < 15

Image cycle rate (Hz) 60


Maximum operating distance (m)

1800


Display type AMOLED


Display resolution (Pixel) 1920x1080



Image display

Different versions (7 different colour modes)


Diopter compensation -5/+5


Battery durability (h) 6


Special features:


Infrared illuminator -

Digital imaging yes

Video connection yes



Headmount -


Overexposure protection yes



Day-night-system yes



Splash-proof yes



Threaded tripod connector -



ancillary lenses available no


WiFi yes



attachment no



Rangefinder Laser rangefinder (1000m)


Field of view:
True field of view (°) 12,5x10,0


Field of view at 100 m (m) 22


Area of application
Object protection & observation yes

Hunting & and nature observation yes


Navigation & Fishing -


Cave exploration & Camping -



Colour black
Length (mm) 138
Width (mm) 176
Height (mm) 66
Weight (g) 700
Series Quest

Battery type 18650
