Skywatcher Mount CQ350 Pro SynScan GoTo

In short:

• Up to 35 kilograms load capacity
• Database with 42,900 objects
• Toothed belt drive for smooth operation
• SynScan V.5 handbox
• Dual dovetail clamp (Vixen and Losmandy style)

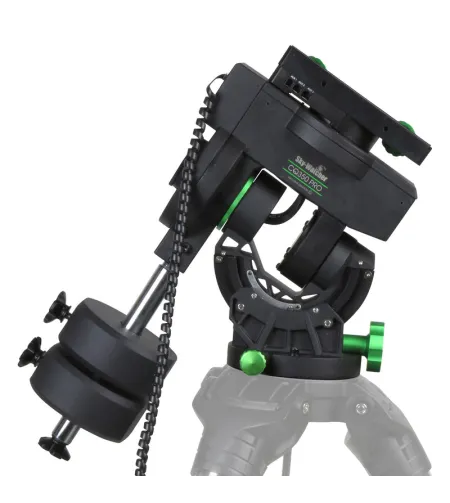

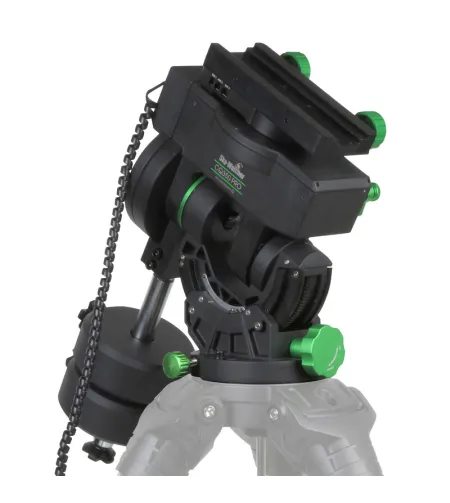

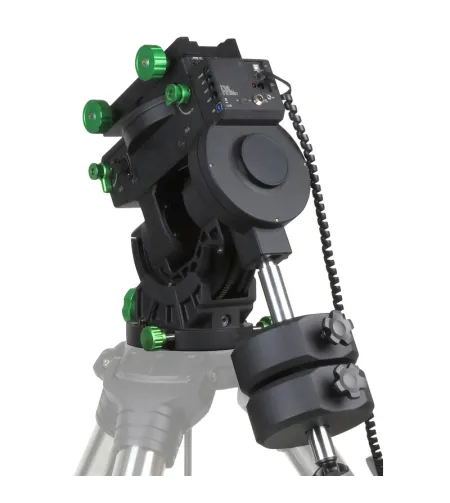

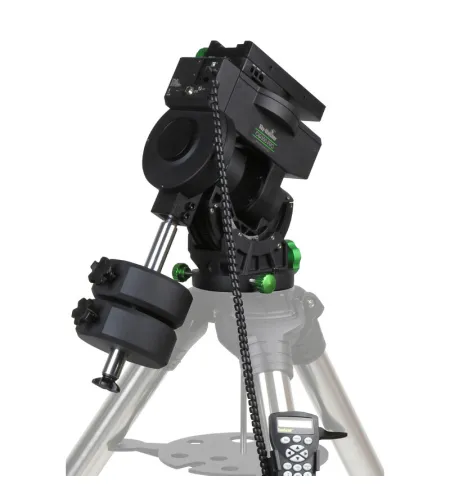

In the CQ350, Sky Watcher presents a mount which sits between the EQ6-R and the EQ8-R. It can be used for mobile astrophotography, in the backyard or in public observatories. It is, therefore, available both with and without a tripod. The equatorial CQ350 Pro features the well-proven SynScan™ computerised control system with 42,900 objects within its integrated database. These can be easily called up using their Messier, NGC or other catalogue number. Using an optional WiFi dongle, it is possible to control the mount via an app on iOS or Android devices. The mount was developed for ambitious astrophotographers, its maximum load capacity is 35kg. The combined dovetail rail clamps for 45 and 75mm prism rails allows a large range of telescopes and other accessories to be connected. This quiet mount moves using belt drives with stepper motors on both axes (encoder resolution: 55,193,600 counts/rev., approx. 0,023 arc seconds). Its quiet operation and high slewing speed make this mount appealing to observatories with public guided tours, too. It comes with two counterweights, each weighing 10kg. An external polarscope can also be connected to facilitate quick positioning. The CQ350 mount is compatible with the EQ8 pier.





Max. additional load capacity (kg)- 35 Mounting saddle- Losmandy & Vixen Polar elevation setting (°) - 0-70 Slow-motion azimuth adjustment (°) - +/-15 Worm gear teeth (DEC) (piece) - 288 Worm gear teeth (RA) (piece)- 308 RA worm gear diameter (mm) - 155 Encoder - yes Interfaces: 4xUSB, 1xShutter Release, 1xPower Input, 3xPower Output, 1xHandcontroller Port & 1xAutoguider Port Cable-guide - internal Power supply - 16 Power consumption in open circuit (mA) - 2000 Motor type - Stepper motors Toothed belt drive

- yes Weight mount head only (kg) - 15 Slewing speeds - 4 Drive type - Worm wheel Special features - GoTo system Pole finder- no Motor-powered - yes Tripod - without tripod Transport cases - no Type of build - Equatorial Series - CQ350 Total weight (kg) - 35,2 GoTo control- Database 42.900 Tracking speeds - sideral, solar and lunar GoTo Language - multilingual Software - SynScan Autoguiding - yes
